Insulator, Engine Mount, Rear: Removal: Removal: Notes

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

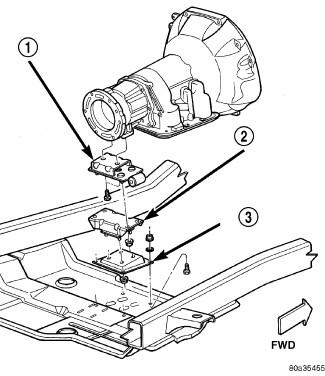

Fig 1: Rear Engine Mount Isolator & Bracket (Automatic Transmission)

Courtesy of CHRYSLER GROUP, LLC

Remove the nuts and the rear engine mount isolator (2).
On 4x4 vehicles If required, remove the bolts and the rear engine mount bracket (1).

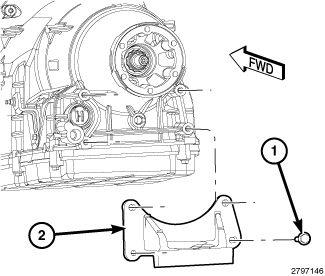

Fig 2: Rear Engine Mount Bracket & Bolts (4x2)
Courtesy of CHRYSLER GROUP, LLC
On 4x2 vehicles if required, remove four bolts (1) and the rear engine mount bracket (2).
