Seal(S), Valve Guide: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the springs are to be reused, identify their positions so that they can be reassembled into their original locations.

Remove the valve spring(s) (2). Refer to SPRING(S), VALVE, REMOVAL .

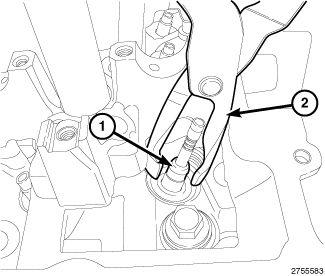

Fig 1: Valve Guide Seal & Valve Seal Tool
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Number 5 cylinder exhaust valve guide seal shown in illustration, all other valve guide seals similar.
Remove the valve guide seal (1) using a valve seal tool (2). Discard the removed seal.

Fig 2: Valve Spring Seat
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Number 5 cylinder exhaust valve spring seat shown in illustration, all other valve spring seats similar.
If required, remove the valve spring seat (1).
If required, remove the valve(s). Refer to VALVES, INTAKE AND EXHAUST, REMOVAL .
