Seal(S), Valve Guide: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Valve Spring Seat

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Reassemble the valves into their original locations. If the valves or valve seats have been refinished, verify that the valve stem tip height is within specification. Refer to ENGINE SPECIFICATIONS . Number 5 cylinder exhaust valve shown in illustration, all other valves similar.

If removed, install the valve(s). Refer to VALVES, INTAKE AND EXHAUST, INSTALLATION .
If removed, install the spring seat (1) over the valve guide.

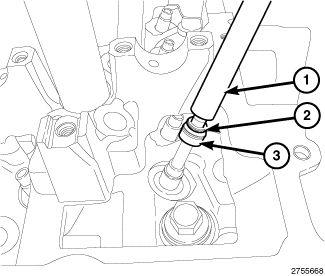

Fig 2: Installing Valve Guide Seal
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Ensure that the garter spring (2) is intact around the top of the valve guide seal (3). Number 5 cylinder exhaust valve guide seal shown in illustration, all other valves similar.
Apply engine oil to the lip of the valve guide seal (3). Install the valve guide seal (3) over the valve stem. Using an appropriate driver (1), push the seal firmly and squarely over the valve guide. Do Not Force the seal against the top of guide.
NOTE:
If the valve springs are being reused, reassemble them into their original locations.
Install the valve spring(s). Refer to SPRING(S), VALVE, INSTALLATION .
