Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

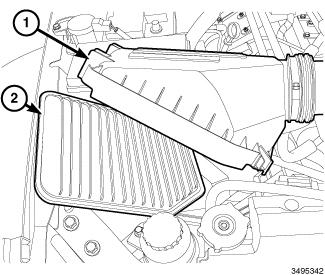

Fig 1: Air Cleaner Housing Cover & Air Cleaner Element
GC0153998Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (2) into the air cleaner housing.

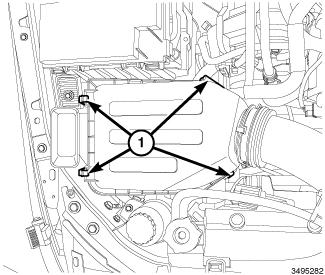

    Fig 2: Air Cleaner Housing Cover Latches
    GC0153997Courtesy of CHRYSLER GROUP, LLC
  2. Seat the cover onto the housing and secure the four housing cover latches (1).
  3. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
