Bulb - Position Lamp
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
NOTE:
The following procedure applies only to vehicles manufactured for export markets. Vehicles manufactured for domestic markets do not have a position lamp bulb, socket or wiring provided in the headlamp unit.

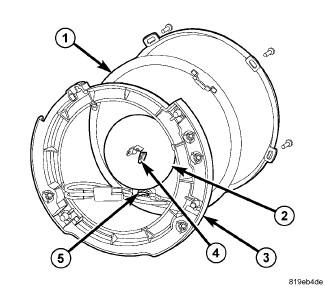

- Align the base of the bulb with the position lamp bulb socket (5).
- Push the bulb straight into the socket until the base is firmly seated.
- Rotate the bulb clockwise about 30 degrees to lock it into place.
- Align the socket and bulb with the opening near the bottom of the headlamp unit housing (1).
- Push the socket and bulb straight into the rubber grommet in the housing until the socket is firmly seated.
- Reinstall the headlamp unit into the mounting collar (3). Refer to UNIT, HEADLAMP, INSTALLATION .
- Reconnect the battery negative cable.
