Lamp, UNDERHOOD: Installation: Lamp
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

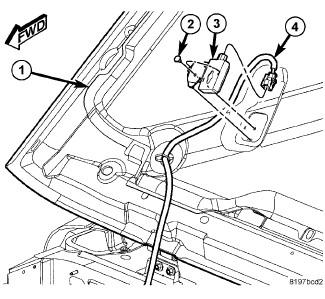

- Position the underhood lamp and bracket (3) to the underside of the inner hood panel reinforcement (1) as a unit. Be certain that the locating tab on the lamp bracket is engaged into the locating hole in the inner hood panel reinforcement.
- Install the push pin type blind rivet (2) that secures the underhood lamp to the inner hood panel reinforcement.
- Reinstall the underhood lamp bulb and lens. Refer to LAMP, UNDERHOOD, INSTALLATION .
- Reconnect the headlamp and dash wire harness connector (4) to the underhood lamp connector receptacle.
- Reconnect the battery negative cable.
