Lamp, UNDERHOOD: Installation: Bulb

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

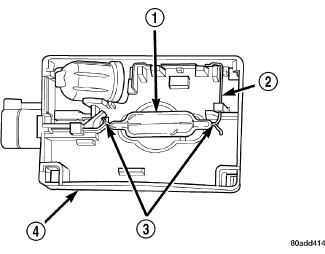

Fig 1: Underhood Lamp Bulb Holder

Courtesy of CHRYSLER GROUP, LLC

Engage one of the terminal loops (3) of the bulb (1) over the bulb holder closest to the connector receptacle of the underhood lamp housing (4).
Depress the other bulb holder (2) inward far enough to engage the remaining bulb terminal loop.

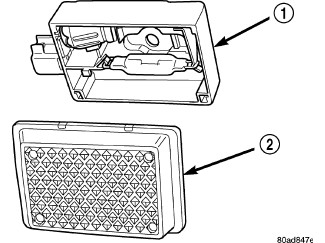

Fig 2: Underhood Lamp
Courtesy of CHRYSLER GROUP, LLC
Position the lens (2) over the lamp housing and use hand pressure to press the lens firmly and evenly onto the housing until it snaps into place.
Reconnect the battery negative cable.
