Lamp, Park And Turn Signal: Installation: Bulb
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

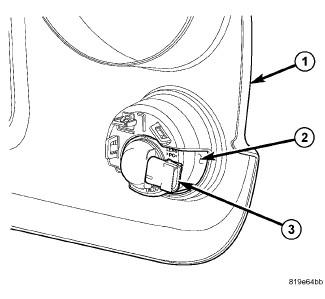

- Align the base of the bulb with the park/turn signal lamp socket (3).
- Push the bulb straight into the socket until the base is firmly seated.
- Reach behind the lower outboard corner of the grille panel (1) to access and align the socket and bulb with the keyed opening on the back of the lamp housing (2).
- Insert the socket and bulb into the housing until the socket is firmly seated.
- Rotate the socket clockwise about 30 degrees to lock it into place.
- Reconnect the wire harness connector to the bulb socket connector receptacle.
- Reconnect the battery negative cable.
