Lamp, License Plate: Installation: Bulb
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

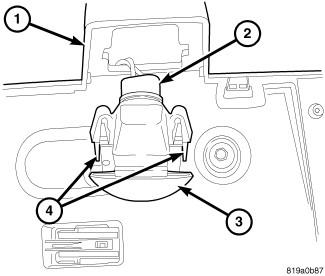

- Align the base of the bulb with the license plate lamp socket (2).
- Push the bulb straight into the socket until the base is firmly seated.
- Align the socket and bulb with the keyed opening on the back of the license plate lamp lens (3).
- Insert the socket and bulb into the lens until the socket is firmly seated.
- Rotate the socket clockwise about 30 degrees to lock it into place.
- Push the lens upward into the license plate lamp hood (1) until the two latch tabs (4) integral to the lens snap into place.
- Reconnect the battery negative cable.
