Lamp, Fog, Rear: Installation: Lamp
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following procedure applies only to vehicles manufactured for export markets. Rear fog lamps are not available in vehicles manufactured for domestic markets.

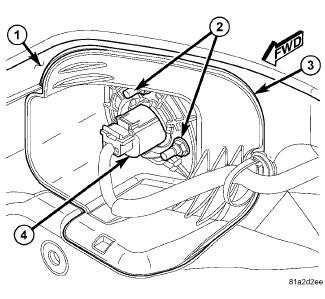

- From the face of the rear bumper, position the rear fog lamp into the receptacle on the outboard end of the rear bumper cover (1).
- Engage the two mounting studs on the back of the lamp housing through the holes in the retainer cap (3) on the back of the rear bumper cover.
- Install and tighten the two nuts (2) that secure the lamp to the retainer cap. Tighten the nut to 1.5 N.m (14 in. lbs.).
- Reconnect the take out and connector (4) of the rear bumper wire harness to the bulb socket on the back of the lamp.
- Lower the vehicle.
- Reconnect the battery negative cable.
