Lamp, Fog, Front: Removal: Lamp
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- For export market vehicles, turn the front wheels fully in either direction.
- Raise and support the vehicle.
- For domestic market vehicles, remove the front bumper lower air dam from the vehicle.

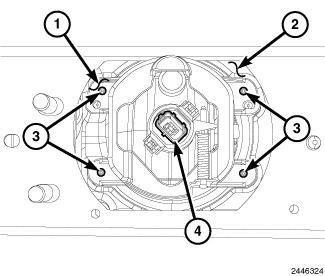

- Disconnect the engine compartment wire harness connector from the front fog lamp bulb connector receptacle (4).
- Remove the four screws (3) that secure the front fog lamp housing (1) to the back of the front bumper cover (2).
- Remove the lamp from the back of the front bumper cover.
