Lamp, Fog, Front: Installation: Bulb
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

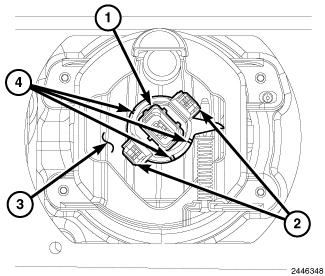

- Reach up behind the front bumper to access and align the index tabs (4) of the front fog lamp bulb with the slots in the collar of the bulb opening on the back of the front fog lamp housing (3).
- Insert the bulb into the housing until the index tabs are engaged in the slots of the collar.
- Firmly and evenly push the bulb straight into the lamp housing until both bulb latch features (2) snap into place and are fully engaged.
- Reconnect the engine compartment wire harness connector to the bulb connector receptacle (1).
- If it was removed during bulb removal, reinstall the front bumper lower air dam onto the vehicle.
- Lower the vehicle.
- Reconnect the battery negative cable.
