Front Wheel Stud

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

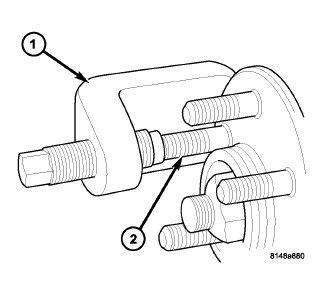

Fig 1: Wheel Stud
GC0085488Courtesy of CHRYSLER GROUP, LLC
1 - C-4150-A
2 - STUD
CAUTION:

Do not use a hammer to remove wheel studs.

  1. Raise and support vehicle.
  2. Remove wheel and tire assembly.
  3. Remove brake caliper, caliper adapter and rotor. Refer to ROTOR, BRAKE, REMOVAL .
  4. Remove stud (2) from hub with Remover (special tool #C-4150A, Press, Ball Joint) A (1).
