Shaft, Axle: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

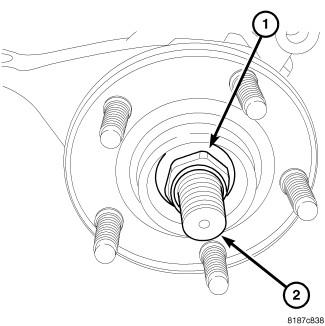

Fig 1: Stub Shaft Nut

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The hub nut must be left attached to the axle shaft during removal whether servicing the axle shaft or the hub bearing.

With transmission in neutral, position vehicle on hoist.
Remove brake components.
Remove wheel speed sensor from hub bearing.

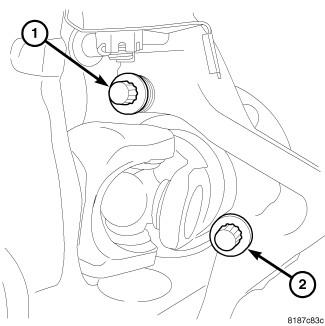

Fig 2: Hub Bearing Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove three hub bearing bolts (1) from steering knuckle (2).

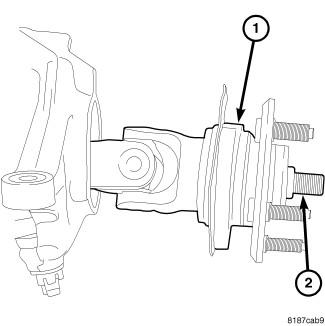

Fig 3: Axle Shaft
Courtesy of CHRYSLER GROUP, LLC
Remove hub bearing (1) with axle shaft (2) through steering knuckle (3).
Remove brake shield and hub bearing from axle.

Fig 4: Hub Bearing Assembly In A Bench Vise
Courtesy of CHRYSLER GROUP, LLC
Clamp the axle shaft and hub bearing assembly (1) in a bench vise (2) and remove the axle shaft nut.
NOTE:
Make sure when clamping the axle shaft in a vise (2) that it is clamped at the yoke ear of the shaft.
