Standard Procedure - Park Brake System Lockout

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

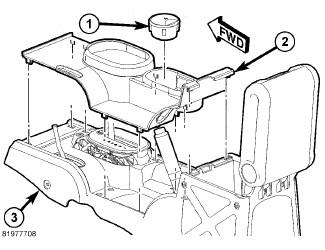

Fig 1: Removing/Installing Cup Holder Or Ash Receiver & Console Bezel

Courtesy of CHRYSLER GROUP, LLC

Remove the center floor console (3). Refer to CONSOLE, CENTER, REMOVAL .

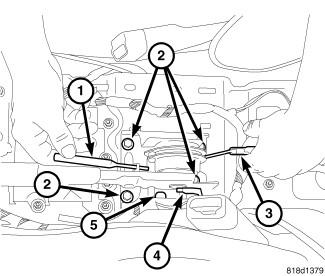

Fig 2: Park Lever Lock Out
Courtesy of CHRYSLER GROUP, LLC
Pull up on the equalizer cable (3) and then install a suitable tool (1) to lockout the park brake lever.

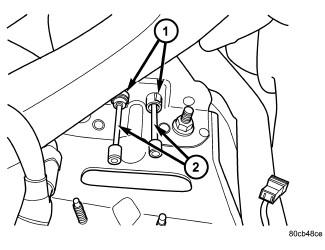

Fig 3: Body Bracket & Cables
Courtesy of CHRYSLER GROUP, LLC
Remove the rear park brake cables (2) from the equalizer.

When repairs are completed install the rear park brake cables to the equalizer, remove the lockout tool, check the operation of the system and then install the center floor console. Refer to CONSOLE, CENTER, INSTALLATION .
