Rear Brake Hose

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Brake Hose & Banjo Bolt
GC0130678Courtesy of CHRYSLER GROUP, LLC
  1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.
  2. Raise and support vehicle.
  3. Remove the banjo bolt (2) from the rear caliper for the brake hose (1).

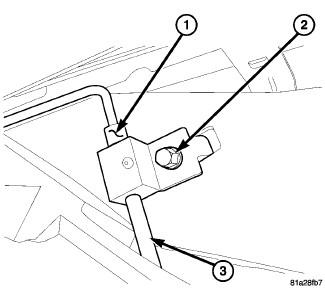

    Fig 2: Rear Brake Line, Mounting Bolt & Brake Hose
    GC0130679Courtesy of CHRYSLER GROUP, LLC
  4. Remove the rear brake line (1) from the brake hose (3) at the frame.
  5. Remove the mounting bolt (2) for the brake hose (3) at the frame.
  6. Remove the brake hose (3).
