Front Brake Hose

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

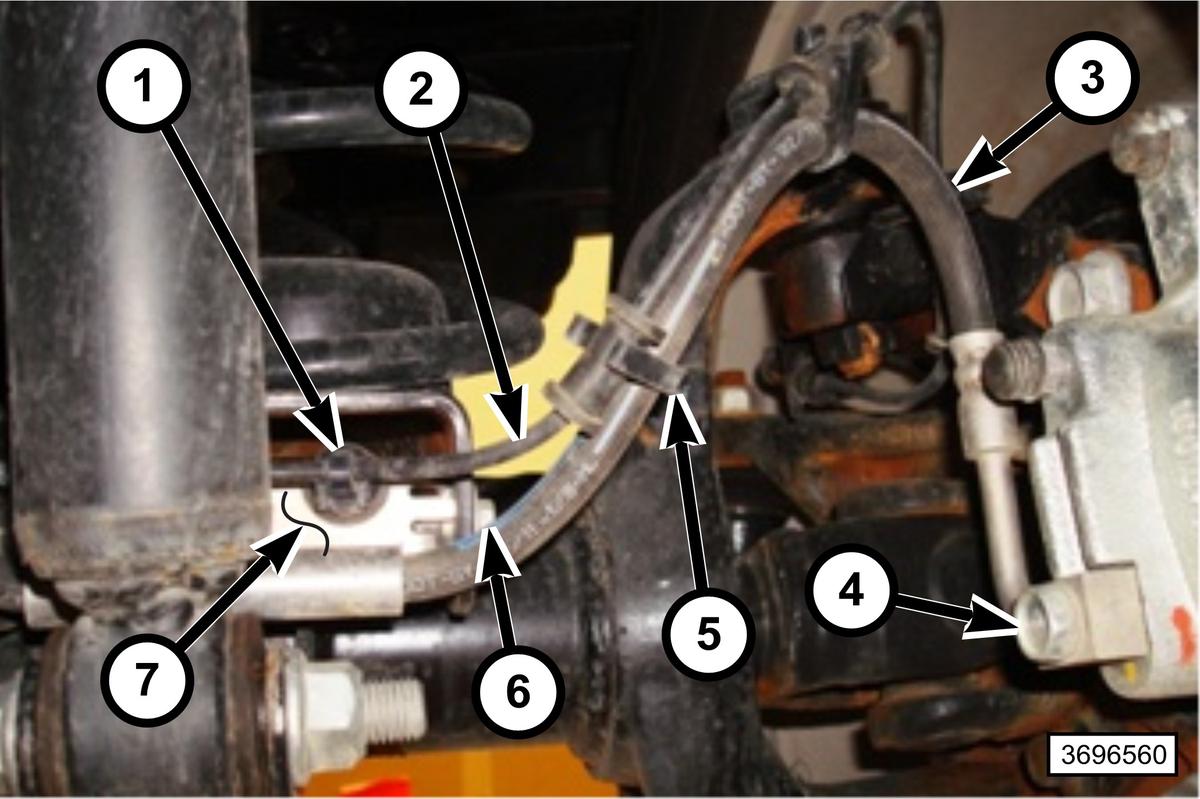

Fig 1: Wheel Speed Sensor Wire, Brake Hose, Clips, Bracket & Banjo Bolt
GC0148408Courtesy of CHRYSLER GROUP, LLC
  1. Install a prop rod on the brake pedal to keep pressure on the brake system. Holding the pedal in this position will isolate the master cylinder from the hydraulic brake system and will not allow brake fluid to drain out of the brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.
  2. Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the tire and wheel assembly.
  4. Remove the wheel speed sensor wire (2) from all brake hose clips (5).
  5. Remove the two wheel speed sensor push in type retainers (1) from the brake hose spring bracket (7).
  6. Remove the brake hose spring bracket bolt (6).
  7. Remove the brake hose banjo bolt (4) at the caliper.

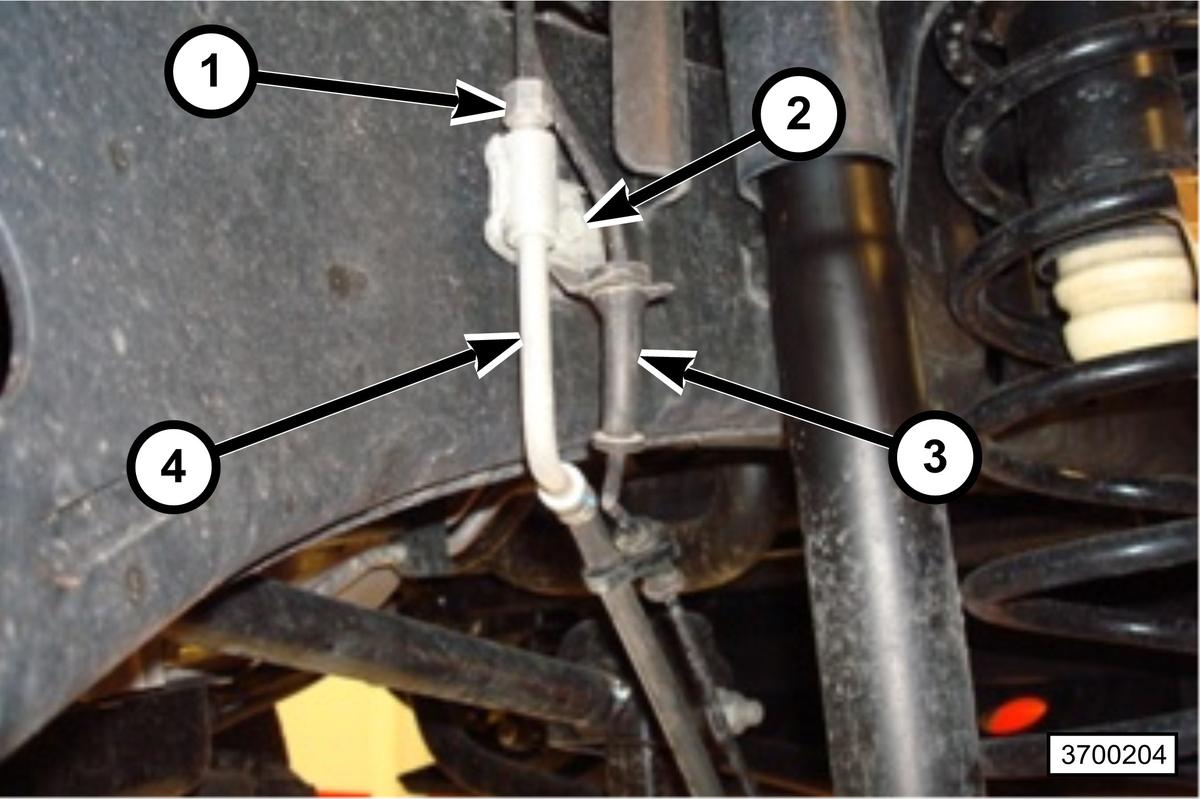

    Fig 2: Wheel Speed Sensor Wire, Brake Hose, Tube Nut & Bolt
    GC0148409Courtesy of CHRYSLER GROUP, LLC
  8. Remove the wheel speed sensor wire (3) from the brake hose to frame routing clip on the brake hose (4).
  9. Remove the brake line tube nut (1) from the brake hose (4) at the frame.
  10. Remove the mounting bolt (3) at the brake hose to frame routing clip to remove the brake hose (4).
