Rotor, Brake: Removal: Front

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

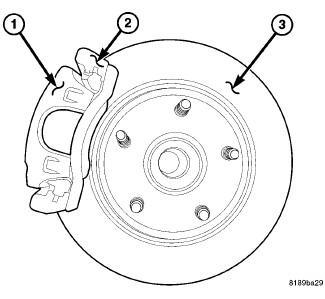

Fig 1: Identifying Disc Brake Rotor
GC0130316Courtesy of CHRYSLER GROUP, LLC
  1. Remove wheel and tire assemble.
  2. Remove caliper (1). Refer to CALIPER, DISC BRAKE, REMOVAL .
  3. Remove retainers securing rotor to hub studs.
  4. Remove rotor (3) from hub.
  5. If rotor shield requires service, remove front hub and bearing assembly.
