Caliper, Disc Brake: Removal: Rear

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

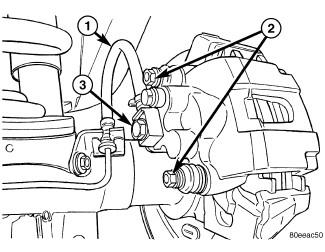

Fig 1: Caliper Slide Pins, Brake Hose Banjo Bolt & Brake Hose
GC0130662Courtesy of CHRYSLER GROUP, LLC
  1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.
  2. Raise and support vehicle.
  3. Remove rear wheel and tire assembly.
  4. Drain small amount of fluid from master cylinder brake reservoir with a clean  suction gun.
  5. Bottom caliper pistons into the caliper by prying the caliper over.
  6. Remove brake hose banjo bolt (3) and discard gasket washers.
  7. Remove the caliper slide pins (2).
  8. Remove caliper from the adapter.
  9. Remove the brake pads.
