Caliper, Disc Brake: Installation: Rear

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

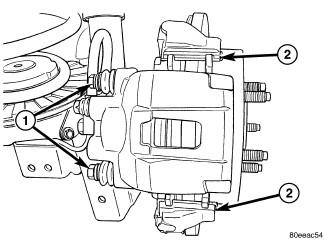

Fig 1: Installing Caliper
GC0130674Courtesy of CHRYSLER GROUP, LLC
  1. Install the brake pads if removed.
  2. Install caliper to the caliper adapter.
  3. Coat the caliper mounting slide pin bolts (1) with silicone grease. Then install and tighten the bolts to 35 N.m (26 ft. lbs.).
  4. Install the brake hose banjo bolt if removed.
  5. Install the brake hose to the caliper with new seal washers  and tighten fitting bolt to 31 N.m (23 ft. lbs.).
    CAUTION:

    Verify that the brake hose is not twisted or kinked before tightening the fitting bolt.

  6. Remove the prop rod from the brake pedal.
  7. Bleed the area of repair for the brake system, If a proper pedal is not felt during bleeding an area of repair then a base bleed system must be performed.  . Refer to STANDARD PROCEDURE  .
  8. Install the wheel and tire assemblies. Refer to WHEELS, STANDARD PROCEDURE .
  9. Remove the supports and lower the vehicle.
  10. Verify a firm pedal before moving the vehicle.
