Booster, Power Brake: Installation: Installation
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LHD shown in graphics. The removal and installation procedures and torques specs are the same for the RHD.
- Clean the booster mounting surface.

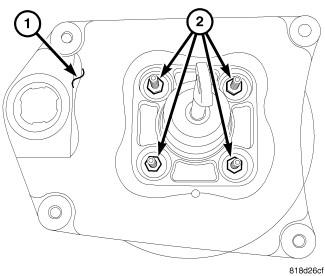

- Install the booster on the mounting plate (1).
- Install the booster mounting nuts (2) that attach booster to mounting plate. Tighten booster mounting nuts to 25 N.m (18 ft. lbs.).

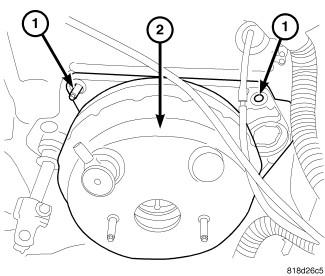

- Install the booster assembly (2) with the mounting plate to the front cowl.
- Install the booster mounting plate nuts (1) that attach the mounting plate to the front cowl. Tighten booster mounting plate nuts in an X pattern to 18 N.m (159 in. lbs.).
- Connect vacuum hose to booster check valve.
- Install master cylinder.
- Lubricate the pedal pin and bushing with Mopar multi-mileage grease. Then slide the booster push rod onto brake pedal pin and secure with retaining clip.
- Reconnect the clutch M/C to pedal if equipped.
- Top off master cylinder fluid level and bleed base brakes.
