Adapter, Disc Brake Caliper: Installation: Rear

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

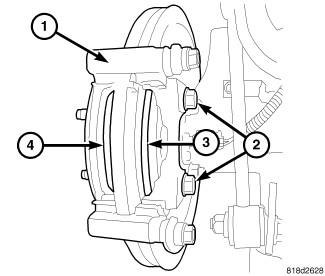

Fig 1: Caliper Adapter, Mounting Bolts & Inboard/Outboard Brake Pad
GC0130657Courtesy of CHRYSLER GROUP, LLC
  1. Install the caliper adapter mounting bolts (2) and tighten to 105 N.m (77 ft.lbs).
  2. Install the inboard (3) and outboard pads (4). Refer to PADS AND/OR SHOES, BRAKE, INSTALLATION .

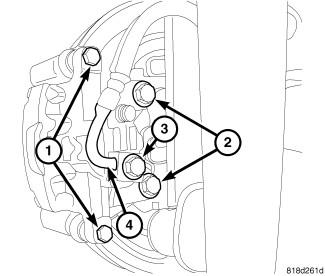

    Fig 2: Disc Brake Caliper Adapter Components - Rear
    GC0130656Courtesy of CHRYSLER GROUP, LLC
  3. Install the caliper. Refer to CALIPER, DISC BRAKE, INSTALLATION .
  4. Install the tire and wheel assembly. Refer to WHEELS, STANDARD PROCEDURE .
