Pump, Electric Vacuum: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

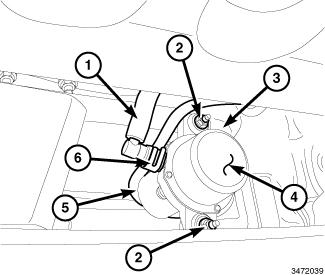

Fig 1: Vacuum Pump, Hoses, Locking Tab, Connector & Nuts
GC0153974Courtesy of CHRYSLER GROUP, LLC
  1. Position the vacuum pump (4), install the mounting nuts (2) and torque to 55 N.m (41 ft. lbs.).
  2. Connect the electrical connector (3).
  3. Connect the quick-connect vacuum hose (1, 6) to the vacuum pump (4) and seat the locking tab (6).

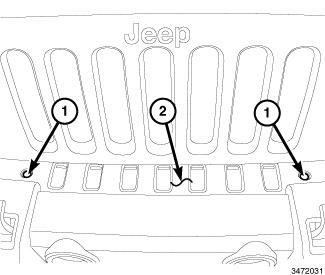

    Fig 2: Bumper Filler Panel & Fasteners
    GC0153973Courtesy of CHRYSLER GROUP, LLC
  4. Position the bumper filler panel (2) and install the fasteners (1).
