Seal, Axle Drive Shaft: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove any sealer remaining from original seals.

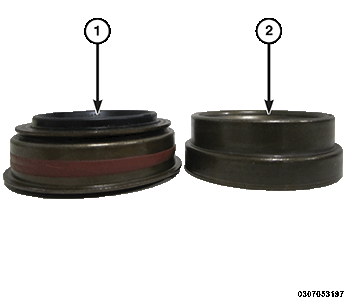

    Fig 1: Identifying Replacement Seal
    GC0169858Courtesy of CHRYSLER GROUP, LLC
  2. Identify if the replacement seal is the new style (1) or the old style seal (2).

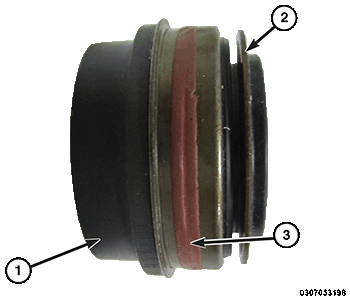

    Fig 2: Installing New Style Seal
    GC0169895Courtesy of CHRYSLER GROUP, LLC
  3. If installing new style seal (3), orient the (special tool #8110, Installer, Seal) (1) as shown in illustrations o that the large flat surface is against the seal.

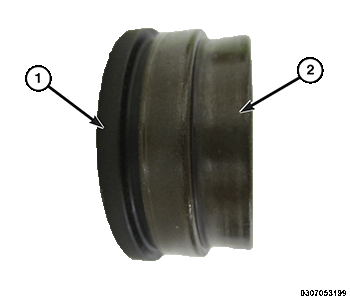

    Fig 3: Installing The Old Style Seal
    GC0169863Courtesy of CHRYSLER GROUP, LLC
  4. If installing the old style seal (2), orient the (special tool #8110, Installer, Seal) (1) as shown in illustration seal fits over the small stepped surface.

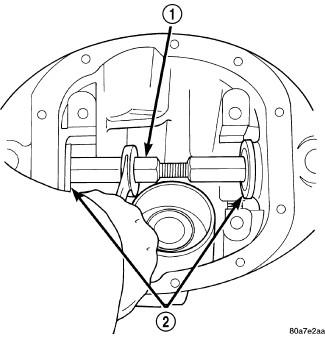

    Fig 4: Axle Seal Installer
    GC0130536Courtesy of CHRYSLER GROUP, LLC
  5. Use (special tool #6797, Turnbuckle) (1) to push against (special tool #8110, Installer, Seal) (2), carefully press the seals into the axle housing.
  6. Install differential into housing. Refer to CASE ASSEMBLY, DIFFERENTIAL, TRU-LOK, INSTALLATION .
  7. Install axles. Refer to SHAFT, AXLE, INSTALLATION .
  8. Install wheel speed sensor. Refer to SENSOR, WHEEL SPEED, FRONT, INSTALLATION .
  9. Install brake components.
