Bearing, Differential Side: Removal: Removal
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
- Remove differential case from axle housing.

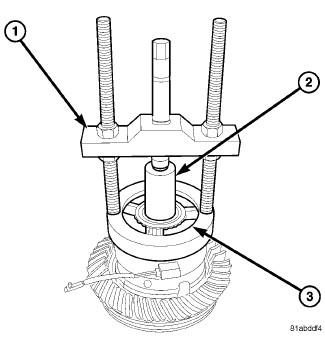

- Remove bearings from the differential case with Puller (special tool #C-293-PA, Puller, Press) (1), Plug (special tool #C-293-3, Adapter, Bearing/Gear) (2), and Adapters (special tool #C-293-47, Block Set, Puller) (3).
