Track Bar, Front: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

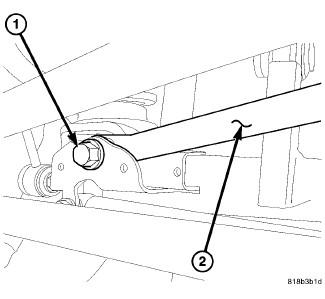

Fig 1: Track Bar, Bolt & Flag Nut
GC0130334Courtesy of CHRYSLER GROUP, LLC
  1. Install the track bar (2) at axle tube bracket. Loosely install the retaining bolt and flag nut (1).
    Fig 2: Track Bar, Nut & Bolt
    GC0130333Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Frame bolt must be installed from front to rear.

  2. It may be necessary to pry the axle assembly over to install the track bar (1) at the frame rail. Install track bar at the frame rail bracket. Install the nut and bolt (2) at the frame rail bracket.
  3. Remove the supports and lower the vehicle.
  4. Tighten the bolt at the frame and axle bracket to 170 N.m (125 ft. lbs.).
  5. Check toe if a new track bar was installed. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
