Stabilizer Bar, Front: Removal: Switch

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

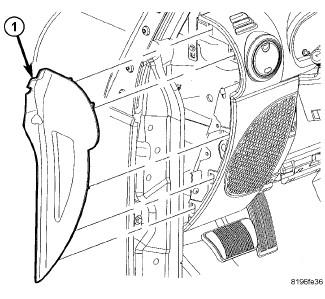

Fig 1: End Cap

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the end cap (1).

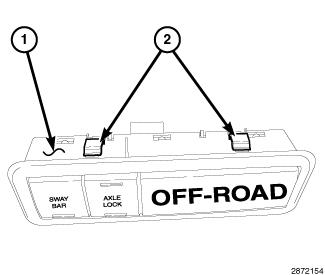

Fig 2: Off Road Switch Pod & Tabs
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The off road switch pod (1) has 2 upper tabs (2), and 2 lower tabs (directly below the upper tabs on the pod, not shown in illustration) that must be pushed toward the switch pod to release the pod from the instrument panel.

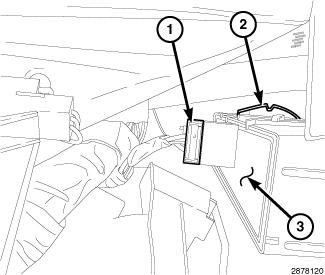

Fig 3: Electrical Connector & Retaining Tabs
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector (1).
NOTE:
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, pry out on the upper edge of the switch pod on the instrument panel face for tension while releasing the retaining tabs.
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, push the outside upper pod retaining tab (2) down to release, then the same for the inside upper retaining tab (not shown in illustration).
Release the lower retaining tabs (not shown in illustration) in the same manner as the upper retaining tabs (2) while rotating slightly down and away from the instrument panel.
