Stabilizer Bar, Front: Installation: Switch

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

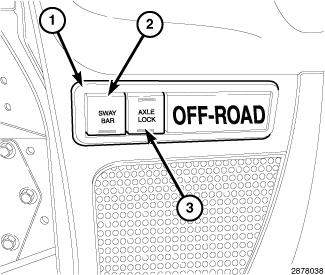

Fig 1: OFF ROAD Switch Pod, SWAY BAR Switch & AXLE LOCK Switch

Courtesy of CHRYSLER GROUP, LLC

Press the switch pod (1) firmly into the instrument panel opening making sure the retaining tabs seat properly.

Fig 2: Electrical Connector & Retaining Tabs
Courtesy of CHRYSLER GROUP, LLC
Attach the electrical connector (1).

Fig 3: End Cap
Courtesy of CHRYSLER GROUP, LLC
Install the instrument panel end cap (1).
Connect the negative battery cable.
