Stabilizer Bar

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Stabilizer Bar Bracket Components
GC0130310Courtesy of CHRYSLER GROUP, LLC
  1. Install the stabilizer bar (1) to the vehicle.
    NOTE:

    Stabilizer bar link to axle bolt should be tightened with vehicle sitting on its tires

  2. Install the right side stabilizer bar bracket bolts (3) to the frame. Tighten to 102 N.m (75 ft. lbs.).
  3. Install the left side stabilizer bar bracket bolts (3) to the frame. Tighten to 102 N.m (75 ft. lbs.).
  4. Install the splash shield.
    Fig 2: Identifying Stabilizer Link (Right) Components
    GC0130328Courtesy of CHRYSLER GROUP, LLC
  5. Install the right upper stabilizer bar link nut (2) to the stabilizer bar. Tighten to 102 N.m (75 ft. lbs.).

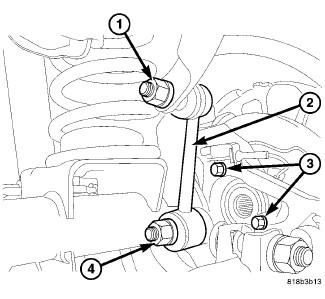

    Fig 3: Identifying Stabilizer Link (Left) Components
    GC0130319Courtesy of CHRYSLER GROUP, LLC
  6. Install the left upper stabilizer bar link nut (1) to the stabilizer bar. Tighten to 102 N.m (75 ft. lbs.).
  7. Remove the support and lower the vehicle.
