Stabilizer Bar Bushing

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the left upper stabilizer bar link nut from the stabilizer bar.
  3. Remove the left lower stabilizer bar link bolt to the axle. This will allow clearance to remove the stabilizer bar from the right side link without removing the whole link.
  4. Remove the right upper stabilizer bar link nut from the stabilizer bar.
  5. Remove the splash shield.
    Fig 1: Identifying Stabilizer Bar Bracket Components
    GC0130310Courtesy of CHRYSLER GROUP, LLC
  6. Remove the right side stabilizer bar bracket bolts (3) to the frame.
  7. Remove the left side stabilizer bar bracket bolts (3) to the frame.
  8. Remove the stabilizer bar (1) to the bench.

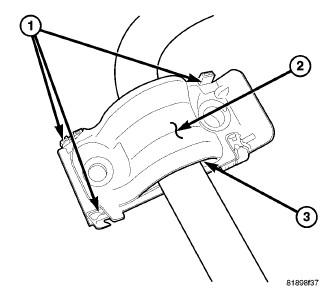

    Fig 2: Stabilizer Bar Bushing, Bracket & Retaining Tabs
    GC0130311Courtesy of CHRYSLER GROUP, LLC
  9. Bend open the retaining tabs (1) on the bracket. If these tabs (1) break that is okay, they are used for the factory installation only.
  10. Remove the retainer bracket (2).
  11. Slide the bushings (3) off the stabilizer bar with a mixture of soapy water.
