Axle Bushing
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper suspension arm from axle. Refer to ARM, UPPER CONTROL, REMOVAL .

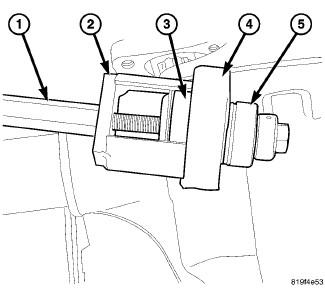

- Install the special tool (special tool #9948-3, Nut, Special) Nut (1), (special tool #9948-1, Receiver) Receiver (2) and (special tool #9948-2, Remover, Bushing) Driver (4).
- Press the bushing out of the axle housing.
