Axle Bracket Bushing
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper suspension arm from the axle. Refer to ARM, UPPER CONTROL, REMOVAL .

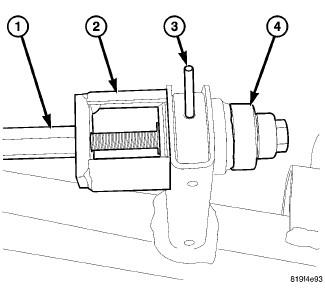

- Install the Bushing Remover/Installer (special tool #9948, Remover/Installer, Bushing) through the bushing and bracket using the following:
- (special tool #9948-3, Nut, Special) Nut (1)
- (special tool #9948-1, Receiver) Receiver (2)
- (special tool #9948-5, Spacer) Spacer (3)
- (special tool #9948-2, Remover, Bushing) Driver (4)
- Press the bushing out of the axle bracket.
