Axle Bushing
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

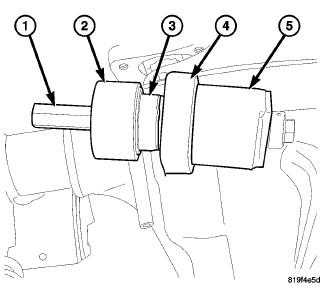

- Place special tool (special tool #9948-3, Nut, Special) Nut (1), (special tool #9948-4, Installer, Bushing) Driver (2), (special tool #9948-1, Receiver) Receiver (5) and the press the bushing (3) in the axle housing (4).
- Remove tools and install the upper suspension arm. Refer to ARM, UPPER CONTROL, REMOVAL .
