Arm, Upper Control: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

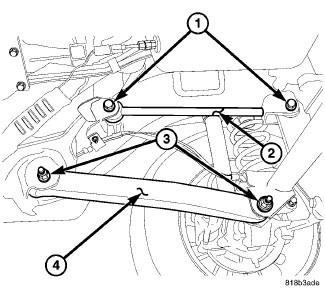

Fig 1: Control Arms, Nuts & Bolts
GC0130302Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Remove electrical clip from the control arm clevis bracket If equipped.
  3. Remove the upper suspension arm nut and bolt (1) at the axle bracket.
  4. Remove the nut and bolt (1) at the frame rail and remove the upper suspension arm (2).
