B160F-11-Twilight/Ambient Light Sensor Input - Circuit Short To Ground: Notes

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

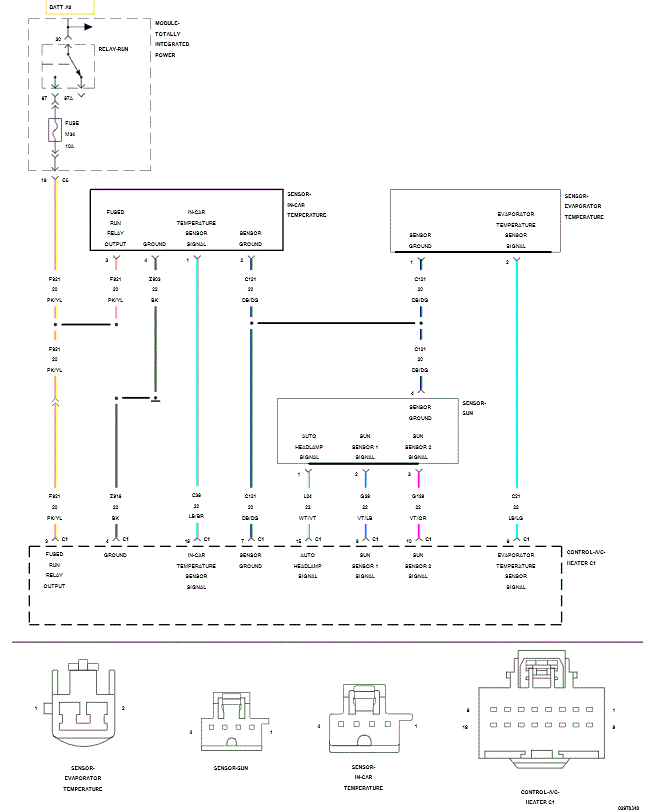

Fig 1: In-Car Temperature Sensor, Evaporative Temperature Sensor & Solar Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
