Exhaust Temperature Sensor 1/2
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

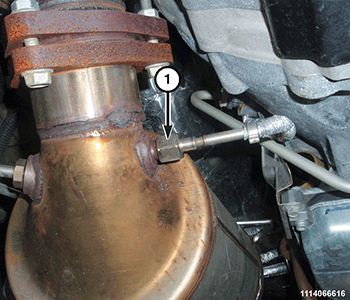

- Install the exhaust temperature sensor (1) and tighten to 45 N.m (33 ft. lbs.).
- Connect the exhaust temperature sensor wire harness connector.
- Remove the support and lower the vehicle.
- Connect the negative battery cable.
