Catalyst, Diesel Oxidation: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Partially raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the front right wheelhouse splash shield. Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .
    Fig 1: Identifying Exhaust Temperature Sensor System Components
    GC0169905Courtesy of CHRYSLER GROUP, LLC
  4. Remove the exhaust temperature sensor. Refer to SENSOR, EXHAUST TEMPERATURE, REMOVAL .
  5. Remove the oxygen sensor. Refer to SENSOR, OXYGEN, REMOVAL .
  6. Remove the bolts (2, 4) and the heat shield (3).
  7. Raise and support the vehicle.
  8. Saturate the exhaust bolts and nuts (3) with Mopar® Rust Penetrant. Allow 5 minutes for penetration.
  9. Remove the Diesel Particulate Filter (DPF). Refer to FILTER, DIESEL PARTICULATE, REMOVAL .

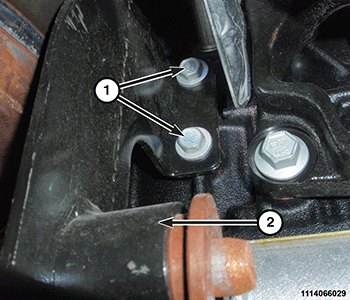

    Fig 2: Identifying Bolts & Diesel Oxidation Catalyst Isolator
    GC0169874Courtesy of CHRYSLER GROUP, LLC
  10. Remove the bolts (2) and the Diesel Oxidation Catalyst (DOC) isolator (2).

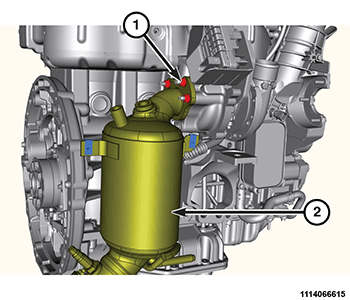

    Fig 3: Identifying Diesel Oxidation Catalyst & Nuts
    GC0169826Courtesy of CHRYSLER GROUP, LLC
  11. Remove the nuts (1) from the DOC-to-turbocharger flange.
  12. Remove the DOC (2) from the vehicle.
