Shaft, Drive, Front: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

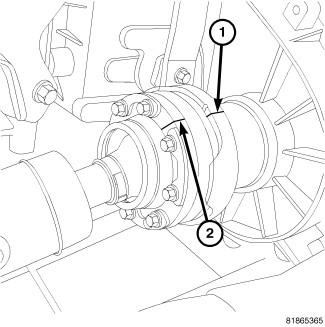

Fig 1: Rear Reference Mark

Courtesy of CHRYSLER GROUP, LLC

With vehicle in neutral, position vehicle on hoist.
Mark an installation reference line across the front propeller shaft CV joint (1) and transfer case flange (2).

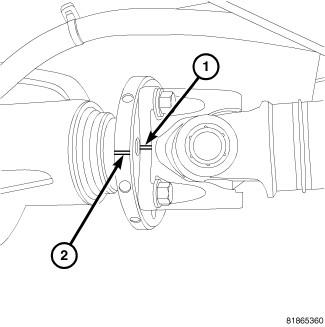

Fig 2: Front Reference Mark
Courtesy of CHRYSLER GROUP, LLC
Mark an installation reference line across the front propeller shaft flange (1) and the axle flange (2).

Fig 3: Flange Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the axle flange (1) bolts (2).

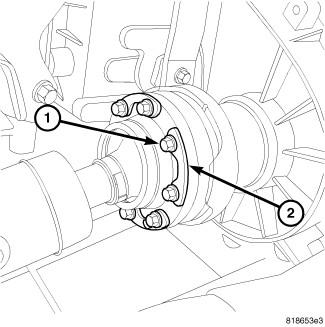

Fig 4: CV Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the CV joint bolts (1) and retainers (2).
Compress the propeller shaft enough to remove the shaft from the flanges.
