Pulley, Power Steering Pump: Removal: Diesel

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

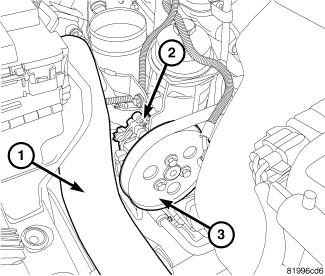

Fig 1: Turbo Air Inlet Tube
GC0131163Courtesy of CHRYSLER GROUP, LLC
  1. Remove the air cleaner box.
  2. Remove the air inlet tube (1).

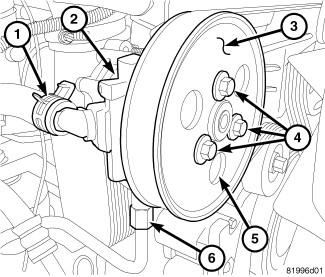

    Fig 2: Removing/Installing Steering Pump - 2.8L
    GC0131164Courtesy of CHRYSLER GROUP, LLC
  3. Remove the serpentine drive belt.
  4. Remove the three bolts (4) securing the pulley (3) to the pump (2).
