Section 198 (Steering System): Pump: Installation: 3.6L

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

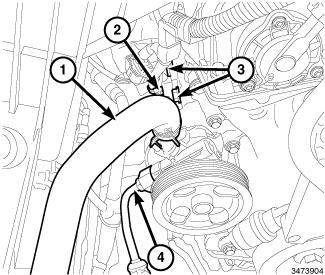

Fig 1: Power Steering Return Hose, Supply Line, Retainer & Bolts
GC0153979Courtesy of CHRYSLER GROUP, LLC
  1. Position the pump and install the upper power steering pump bracket retaining bolts (3). Do not tighten at this time.
  2. Connect the wiring harness routing retainer (2) to the power steering pump bracket.
  3. Install the pressure line (4) on the pump and tighten to 31 N.m (23 ft. lbs.).
  4. Install the supply hose (1) on the pump.

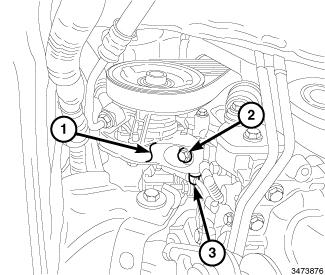

    Fig 2: Power Steering Pump Bracket, Bolt & Retainer
    GC0153977Courtesy of CHRYSLER GROUP, LLC
  5. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  6. Connect the wiring harness routing retainer (3) to the power steering pump bracket (1).
  7. Install the lower power steering pump retaining bolt (2) and tighten all three  retaining bolts to 24 N.m (18 ft. lbs.).
  8. Install the drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
  9. Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
  10. Check for leaks.
