Supply Hose

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power Steering Return Hose, Supply Line, Retainer & Bolts

Courtesy of CHRYSLER GROUP, LLC

Position the supply hose (3) to the vehicle.
Install the supply hose (1) at the pump.

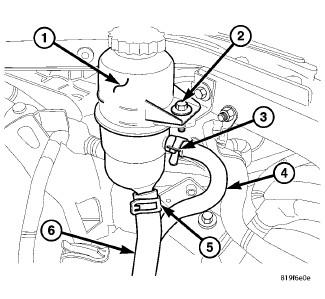

Fig 2: Reservoir, Hoses, Clamps & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the supply hose (6) to the reservoir (1).
Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
Check for leaks.
Install the air box assembly. Refer to BODY, AIR CLEANER, INSTALLATION .
