Handle, Grab: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

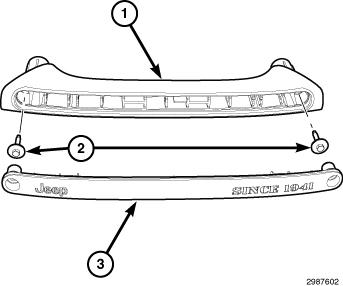

Fig 1: Grab Handle Trim Cover, Bolts & Grab Handle
GC0148251Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate and remove the grab handle trim cover (3).
  2. Remove the bolts (2) and remove the grab handle (1).
