Hinge, Hood: Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

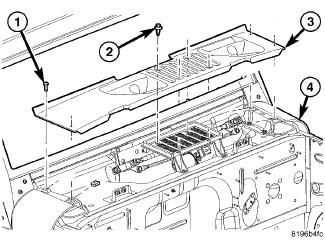

Fig 1: Identifying Cowl Trim Panel Components

Courtesy of CHRYSLER GROUP, LLC

Remove the cowl top panel (3). Refer to COVER, COWL PANEL, REMOVAL .

Fig 2: Body Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
It is not necessary to remove the hood to replace the hood hinges. Hood hinges can be replaced one at a time.
Support the hood with a suitable device.
Remove the hinge to body bolts (2).

Fig 3: View Of Hood Bolts
Courtesy of CHRYSLER GROUP, LLC
Using a grease pencil or equivalent, mark location of hood hinges (1) on hood (3) to aid installation.
Remove the hinge to hood bolts (2) and remove the hinge (1).
