Left Hand Freedom Panel

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

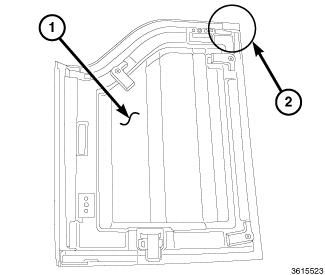

Fig 1: Left Hand Freedom Panel

Courtesy of CHRYSLER GROUP, LLC

Place Left hand freedom panel (1) upside down on a covered surface to prevent scratching.
NOTE:
The following steps will be applied to the Rear corner (2) of the left side freedom panel (1)

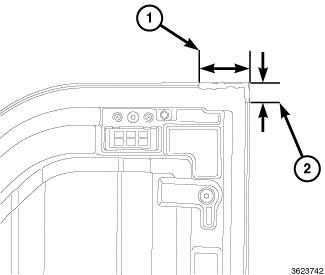

Fig 2: 70mm & 25mm
Courtesy of CHRYSLER GROUP, LLC

1 = 70 mm

2 = 25 mm
Add 4mm diameter butyl, to rear inboard corner groove, as shown.
NOTE:
Push butyl firmly into groove between panels until FLUSH

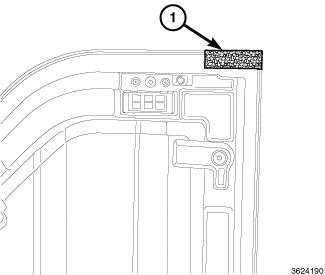

Fig 3: Black Foam
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Make sure foam covers butyl completely
Add 30 X 75 mm Black Foam from the Foam Kit to cover butyl.
