Outlet, Power, 115 V: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

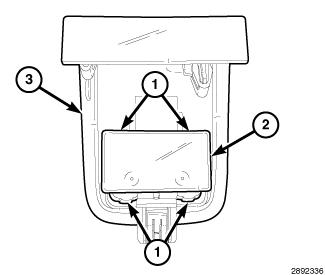

Fig 1: Four Tabs & 115V Power Outlet
GC0148187Courtesy of CHRYSLER GROUP, LLC
  1. Insert the 115V power outlet (2) into the bracket (3).

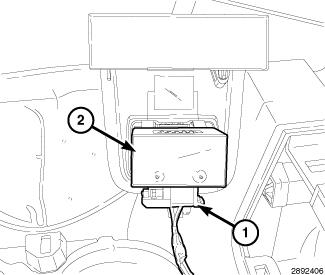

    Fig 2: Trim Stick & Electrical Connector
    GC0148188Courtesy of CHRYSLER GROUP, LLC
  2. Connect the electrical connector (1) to the 115V power outlet (2).
  3. Install the 115V power outlet assembly into the center console.
  4. Close the center console.
  5. Connect the negative battery cable.
