Nozzle, Washer: Description: Front
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

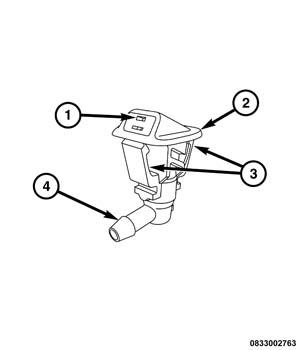

The fluidic front washer nozzles (2) are constructed of molded plastic and have integral latch features (3) that secure them in dedicated mounting holes located at the rear edge of the hood panel near the windshield. The domed upper surface of each washer nozzle is visible on the outside of the hood panel, and the nozzle orifice (1) is oriented towards the windshield glass.
The washer plumbing fitting (4) for the washer nozzle extends below the hood panel and is accessible from the engine compartment.
The front washer nozzles cannot be adjusted or repaired and, if ineffective or damaged, they must be replaced.
