Arm, Wiper: Removal: Rear

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

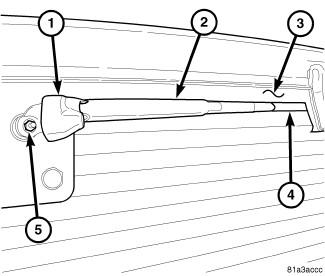

Fig 1: View Of Rear Wiper Arm

Courtesy of CHRYSLER GROUP, LLC

Unsnap and swing the molded plastic nut cover (1) off of the pivot end of the wiper arm (2).
Remove the nut (5) that secures the wiper arm to the rear wiper motor output shaft.
CAUTION:
The use of a battery terminal puller when removing the rear wiper arm is NOT recommended as this may damage the rear wiper arm.
Use a slight rocking action to disengage the rear wiper arm pivot end from the output shaft and remove the wiper arm.
