Shift Valve Pressure Regulating Valve
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

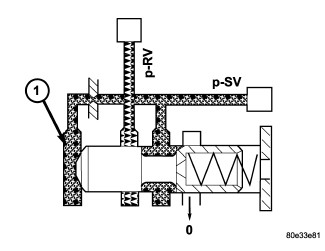

| 1 - SHIFT VALVE PRESSURE REGULATING VALVE |
The non-constant regulating valve pressure (p-RV) is regulated to a constant shift valve pressure (p-SV) at the shift valve pressure regulating valve (1) (Fig 1) and is used to supply the 1-2 and 4-5/3-4/2-3 solenoid valves and the torque converter lockup clutch PWM solenoid valve.
