Shift Pressure Shift Valve
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

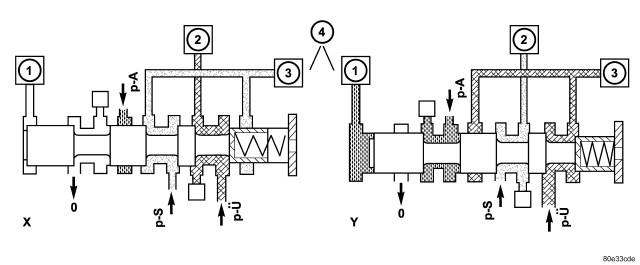

| 1 - 1-2/4-5 COMMAND VALVE |
| 2 - DRIVING CLUTCH K1 |
| 3 - HOLDING CLUTCH B1 |
| 4 - 1-2/4-5 SHIFT PRESSURE SHIFT VALVE |
Each shift group possesses one shift pressure shift valve (4) (Fig 1). The 1-2/4-5 and 2-3 shift pressure shift valves are installed in the shift valve housing; the 3-4 shift pressure shift valve is installed in the valve housing. It assigns the shift pressure (p-S) to the activating actuator and the overlap pressure (p- U) regulated by the overlap regulating valve to the deactivating actuator.
