Holding Pressure Shift Valve
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

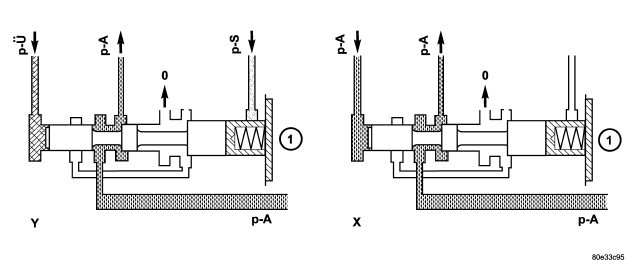

| 1 - HOLDING PRESSURE SHIFT VALVE |
Each shift group possesses one holding pressure shift valve (1) (Fig 1). The 1-2/4-5 and 2-3 holding pressure shift valves are installed in the shift valve housing; the 3-4 holding pressure shift valve is installed in the valve housing. The holding pressure shift valve allocates the working pressure to one actuator of a shift group.
